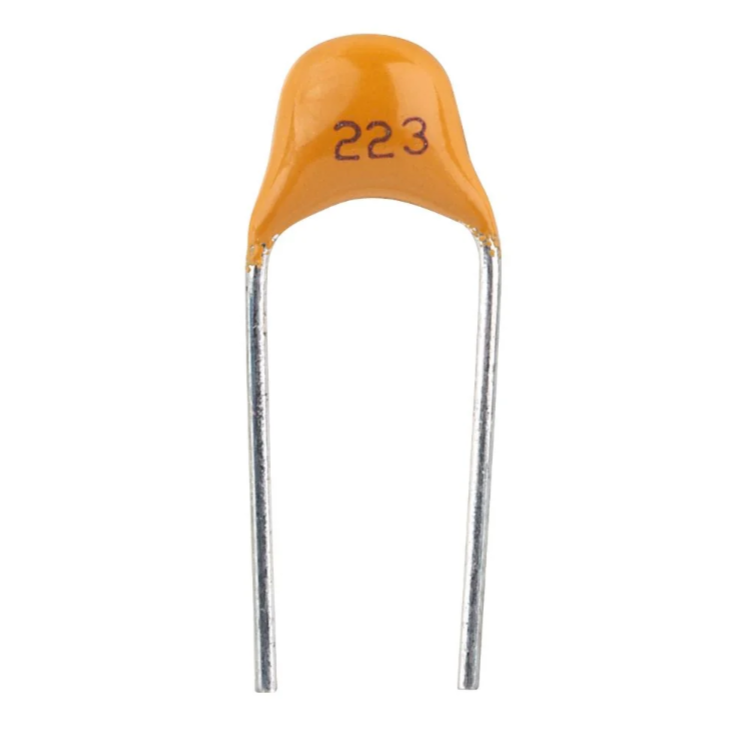

A 22nF (0.022µF) radial-lead ceramic capacitor suitable for filtering, coupling, timing, noise suppression, and general electronic circuit applications. The “223” marking indicates a capacitance value of 22nF.
The 22nF Ceramic Capacitor is a compact, reliable passive electronic component designed for use in a wide range of electronic circuits. It features a radial two-lead construction for easy through-hole PCB mounting.
The capacitor is marked “223”, where 22 × 10³ pF = 22,000 pF = 22nF (0.022µF). It can be used for signal coupling, noise filtering, decoupling, timing circuits, oscillator circuits, and suppression of unwanted high-frequency signals.
Its compact size and simple through-hole mounting make it suitable for PCBs, educational electronics projects, embedded systems, power supplies, control circuits, and general-purpose electronic applications.
Specification | Details |
|---|---|
Component Type | Ceramic Capacitor |
Capacitance | 22nF |
Equivalent Value | 0.022µF / 22,000pF |
Marking | 223 |
Mounting Type | Through-Hole |
Lead Type | Radial |
Number of Leads | 2 |
Application | Filtering, coupling, decoupling, timing, noise suppression |
