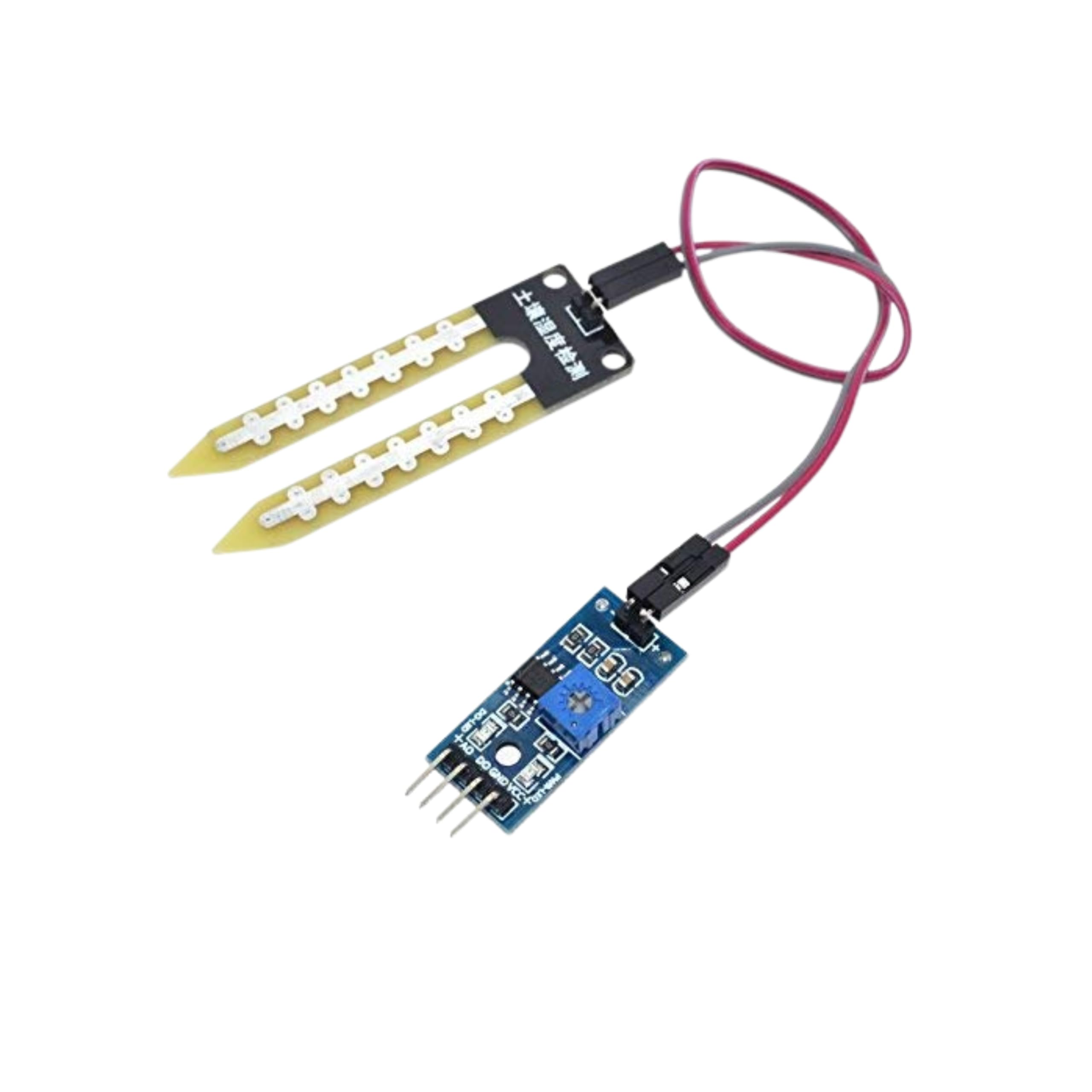

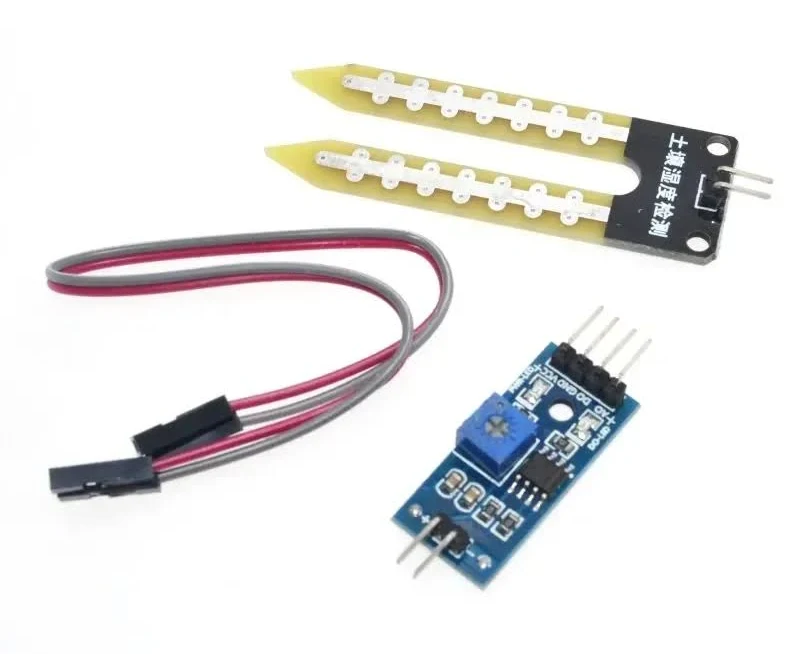

Compact soil moisture sensor module to monitor soil water content. Provides analog and digital output for easy interfacing with Arduino, ESP32, Raspberry Pi, and other microcontrollers. Ideal for automatic irrigation and smart gardening projects.
Only 5 left in stock!
Specification | Details |
|---|---|
Model | Soil Moisture Sensor Module |
Sensor Type | Capacitive or resistive soil moisture sensor |
Operating Voltage | 3.3 V – 5 V DC |
Output | Analog (AO), Digital (DO) |
Interface | 4‑pin module: VCC, GND, AO, DO |
Digital Threshold | Adjustable via onboard potentiometer |
Analog Sensitivity | Provides continuous soil moisture level output |
Power Consumption | Low (<10 mA typical) |
Probe Type | Capacitive (preferred) or resistive (standard) |
Module Dimensions | ~38 × 16 × 10 mm (module) |
Probe Length | ~10 cm (varies by version) |
Weight | ~10 g |
Applications | Automatic irrigation, smart gardening, soil moisture monitoring, educational projects |
