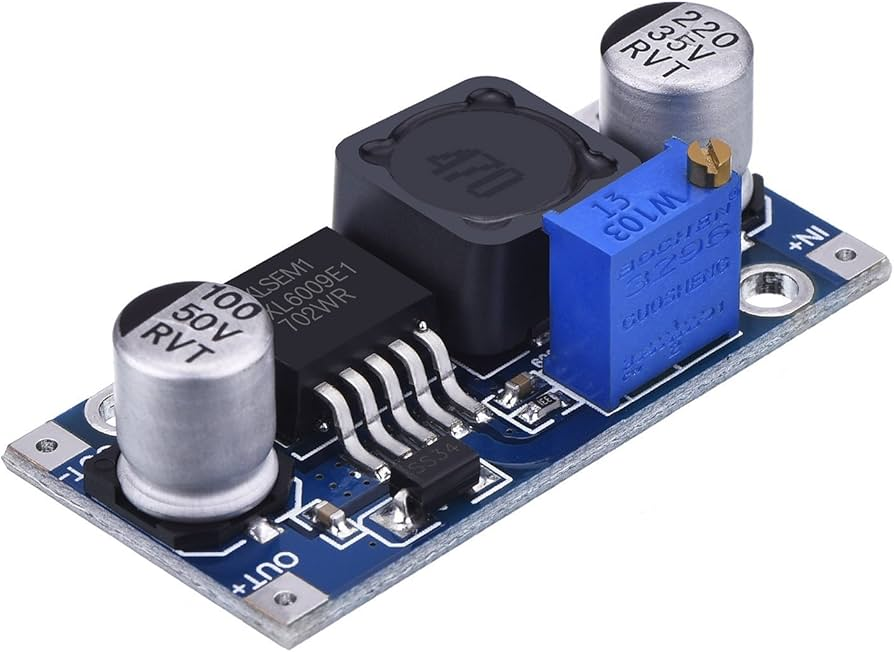

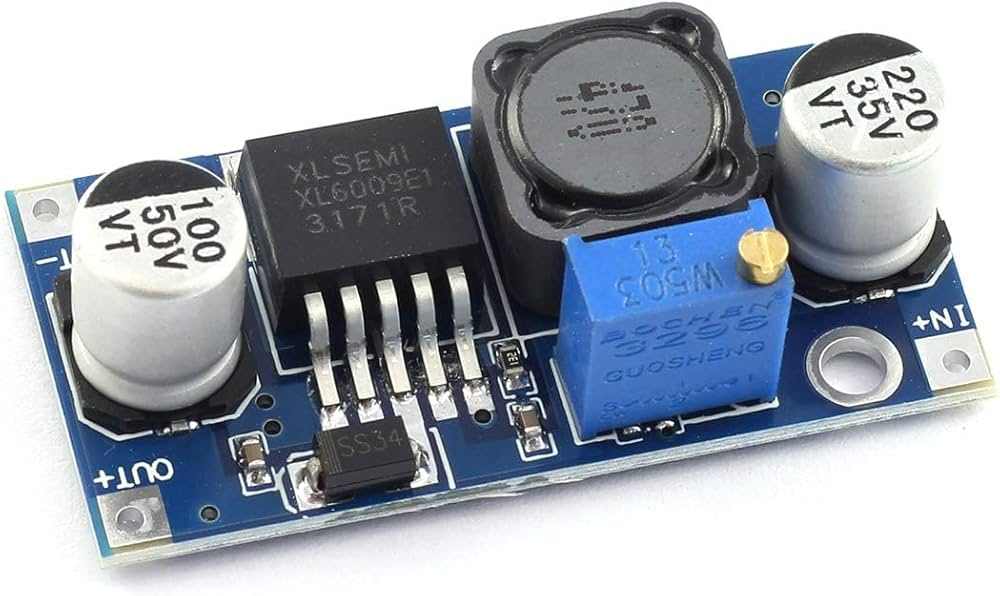

High-power DC-DC step-up (boost) converter module based on the XL6009 IC. Converts low DC voltage to higher adjustable output voltage with good efficiency. Suitable for Arduino, ESP32, battery systems, LED drivers, and power supply projects.
Specification | Details |
|---|---|
IC Used | XL6009 |
Converter Type | DC-DC Step-Up (Boost) |
Input Voltage | 3 V – 32 V DC |
Output Voltage | 5 V – 35 V DC (adjustable) |
Max Output Current | Up to 4 A (practical ~2–3 A with cooling) |
Efficiency | Up to ~94% |
Switching Frequency | 400 kHz |
Adjustment Method | Onboard potentiometer |
Protection | Thermal shutdown, current limiting (IC level) |
Module Dimensions | ~43 × 21 × 14 mm |
Applications | Battery booster, LED driver, Arduino power, solar projects, DIY SMPS |
