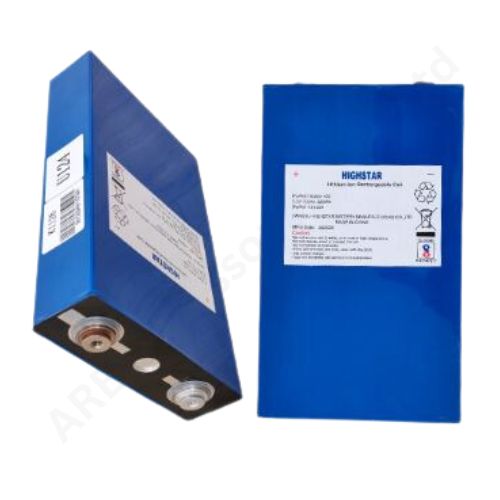

HIGHSTAR IFPP40130220 3.2V 100Ah is a high-capacity LiFePO₄ (Lithium Iron Phosphate) battery cell, supplied as a set of 8 pieces for energy storage and power system applications
The HIGHSTAR LiFePO4 100Ah 3.2V IFPP40130220 Battery Cell is a high-performance, rechargeable lithium iron phosphate (LiFePO4) cell designed for demanding energy storage applications. With its high energy density, long cycle life, and exceptional safety features, this battery is ideal for solar energy storage, electric vehicles (EVs), backup power systems, and industrial applications.
High Capacity & Voltage: 3.2V nominal voltage with a 100Ah capacity for reliable, long-lasting energy.
Long Cycle Life: Over 4,000 charge cycles, ensuring durability and cost-effectiveness.
Fast Charging & Discharging: Supports high charge/discharge currents for high-performance applications.
Stable Performance: Low internal resistance for efficient power output.
Enhanced Safety: Built-in protection against overcharging, over-discharging, and short circuits.
Eco-Friendly: Free from toxic heavy metals like lead and cadmium.
Model: IFPP40130220
Nominal Voltage: 3.2V
Nominal Capacity: 100Ah
Discharge Cutoff Voltage: 2.5V
Maximum Continuous Charge Current: 1C (50A)
Standard Discharge Current: 1C (100A)
Maximum Continuous Discharge Current: 1C (100A)
Charging Voltage: 3.65V
Dimensions: 40mm x 130mm x 220mm
Weight: Approximately 2.8kg
