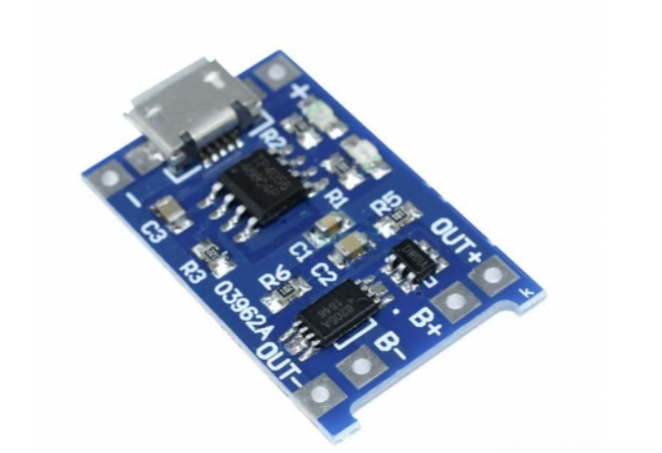

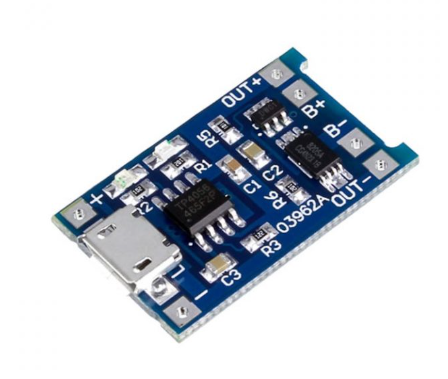

TP4056 1A Li-Ion Battery Charging Board with micro USB is a compact, low-cost charging module that provides safe and efficient charging for single-cell lithium-ion or lithium-polymer batteries at up to 1 A via a standard micro-USB input.
This TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished.
Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time.
Led indicator: red is charging Green is fully charged.
Current Protection: Yes
Inversed polarity: NO.
Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
Fully machinery automated processing, all patch parts manufacturing.
1 x TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection
