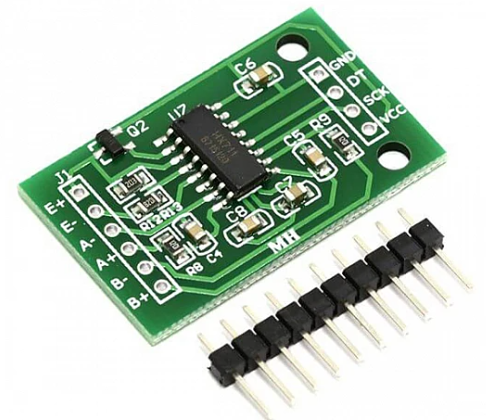

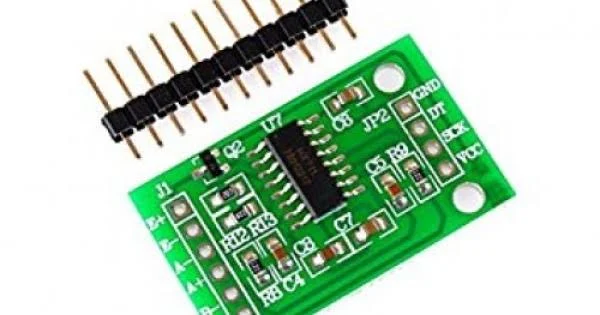

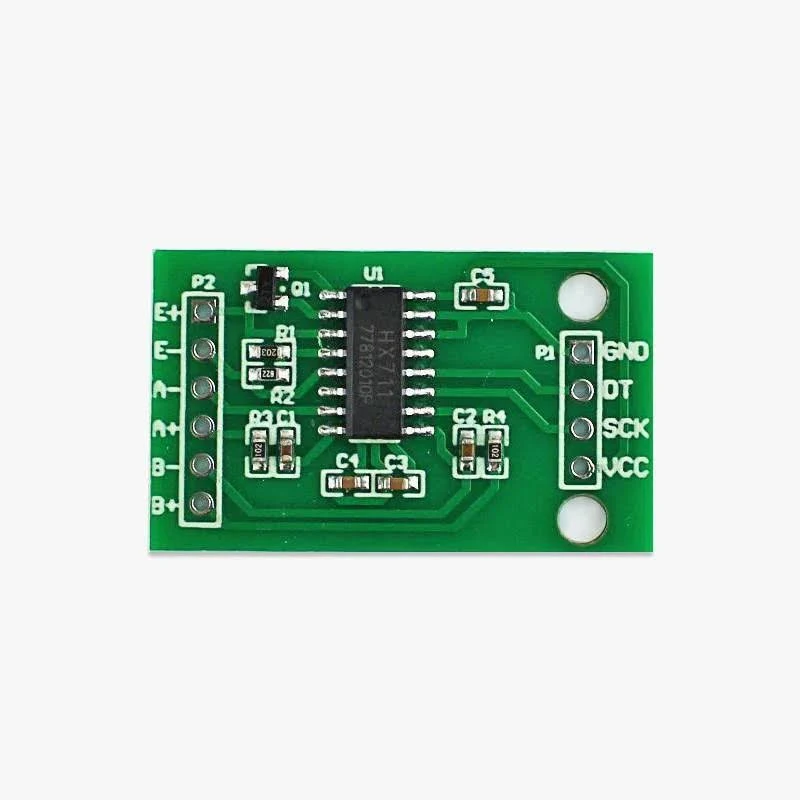

Compact HX711 load cell amplifier module for weighing scales and sensor applications. Provides high-precision 24-bit analog-to-digital conversion for load cells and strain gauges, compatible with Arduino, ESP32, and Raspberry Pi projects.
Specification | Details |
|---|---|
Model | HX711 Load Cell Amplifier Module |
ADC Resolution | 24-bit |
Input Channels | 2 (A/B), A with gain 128/64, B with gain 32 |
Operating Voltage | 2.6 V – 5.5 V DC |
Interface | 2-wire digital interface (DT, SCK) |
Data Rate | 10 Hz or 80 Hz (selectable) |
Power Consumption | ~1.5 mA |
Module Dimensions | ~20 × 16 × 2 mm |
Weight | ~5 g |
Applications | Digital weighing scales, load measurement, strain gauge interfacing, IoT weight monitoring |
