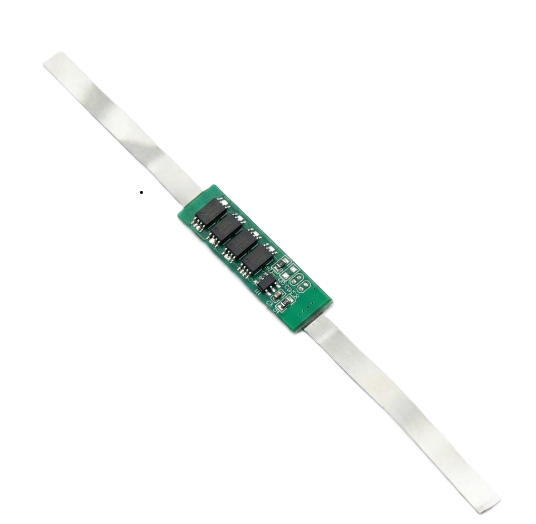

A compact 1S LiFePO₄ Battery Management System (BMS) rated at 6A, designed to provide reliable protection for single-cell LFP batteries with a secure SLCT connector.
The BMS LFP 01S/6A (SLCT) is a high-efficiency Battery Management System specifically developed for single-cell (1S) LiFePO₄ battery packs. It ensures safe and stable battery operation by monitoring voltage and current during charging and discharging cycles.
This BMS incorporates essential protection features such as over-charge, over-discharge, over-current, and short-circuit protection, safeguarding the battery from electrical stress and extending its service life. Since it is a 1S configuration, cell balancing is not required, resulting in a simpler and more compact design.
The integrated SLCT connector allows easy and secure integration into battery packs and electronic systems, making it suitable for both development and production environments. It is ideal for applications including portable power systems, small energy storage units, backup power supplies, IoT devices, and industrial electronics using LiFePO₄ cells.
Parameter | Specification |
|---|---|
Battery Chemistry | LiFePO₄ (LFP) |
Configuration | 1S (Single Cell) |
Rated Current | 6 Amp |
Nominal Voltage | 3.2V |
Maximum Charge Voltage | 3.65V |
Discharge Cut-off Voltage | ~2.0V |
Over-Charge Protection | Yes |
Over-Discharge Protection | Yes |
Over-Current Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | Not Required (1S) |
Connector Type | SLCT Connector |
Operating Temperature | -20°C to +60°C |
Typical Applications | Portable Power, IoT, Backup Systems, Industrial Electronics |
