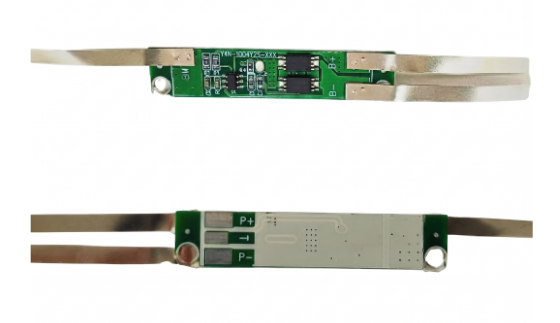

A compact 2S NMC Battery Management System (BMS) rated at 4A, designed to provide reliable protection and safe operation for lithium-ion battery packs with SLCT connector interface.
The BMS NMC 02S/4A (SLCT) is a precision-engineered Battery Management System intended for 2-series (2S) lithium-ion NMC battery packs. It ensures safe charging and discharging by continuously monitoring individual cell voltages and current flow.
This BMS offers comprehensive protection functions including over-charge, over-discharge, over-current, and short-circuit protection, safeguarding battery cells from damage and extending their operational lifespan. Its compact form factor makes it ideal for space-constrained electronic designs.
Equipped with a secure SLCT connector, the BMS allows easy integration into battery packs and electronic systems, reducing wiring complexity and installation time. It is suitable for a wide range of applications such as portable electronics, IoT devices, power tools, medical equipment, and backup battery modules.
Parameter | Specification |
|---|---|
Battery Chemistry | Lithium-ion NMC |
Configuration | 2S (2 Cells in Series) |
Rated Current | 4 Amp |
Nominal Voltage | 7.4V |
Maximum Charge Voltage | 8.4V |
Discharge Cut-off Voltage | ~6.0V |
Over-Charge Protection | Yes |
Over-Discharge Protection | Yes |
Over-Current Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | Yes |
Connector Type | SLCT Connector |
HS Code | 85079090 |
Operating Temperature | -20°C to +60°C |
Typical Applications | IoT, Portable Devices, Power Tools, Backup Systems |
