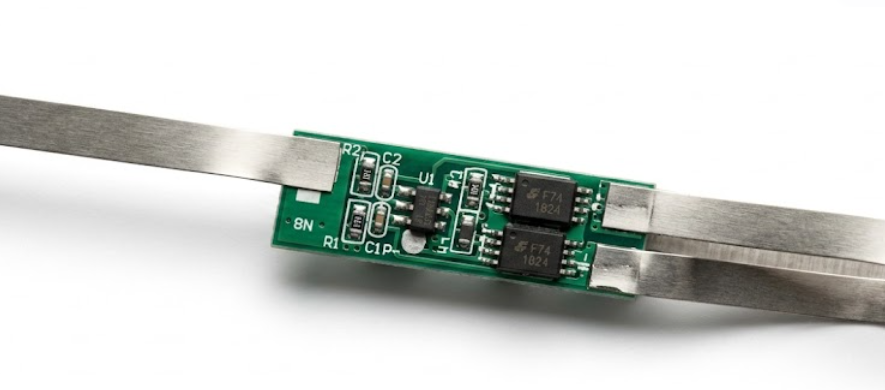

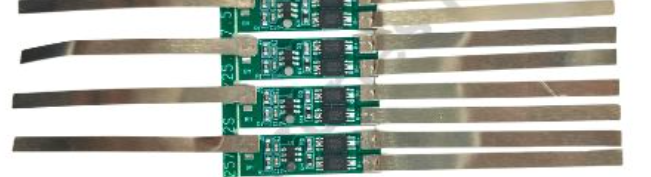

A compact 2S LiFePO₄ Battery Management System (BMS) rated at 4A, designed to ensure safe and efficient operation of lithium iron phosphate battery packs with SLCT connector interface.
The BMS LFP 02S/4A (SLCT) is a reliable Battery Management System developed for 2-series (2S) LiFePO₄ battery packs. It continuously monitors individual cell voltages and current flow to maintain safe charging and discharging conditions.
This BMS provides essential protection features including over-charge, over-discharge, over-current, and short-circuit protection, safeguarding the battery pack from electrical faults and enhancing battery lifespan. The integrated cell balancing function helps maintain equal voltage across both cells, improving overall pack performance and stability.
Equipped with a secure SLCT connector, the BMS allows easy installation and dependable electrical connections, making it suitable for compact battery packs and modular energy solutions. It is ideal for applications such as portable energy storage systems, solar lighting, backup power units, small EV systems, and industrial electronics.
Parameter | Specification |
|---|---|
Battery Chemistry | LiFePO₄ (LFP) |
Configuration | 2S (2 Cells in Series) |
Rated Current | 4 Amp |
Nominal Voltage | 6.4V |
Maximum Charge Voltage | 7.3V |
Discharge Cut-off Voltage | ~4.0V |
Over-Charge Protection | Yes |
Over-Discharge Protection | Yes |
Over-Current Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | Yes (Passive Balancing) |
Connector Type | SLCT Connector |
Operating Temperature | -20°C to +60°C |
Typical Applications | Solar Lighting, ESS, Backup Power, Industrial Electronics |
