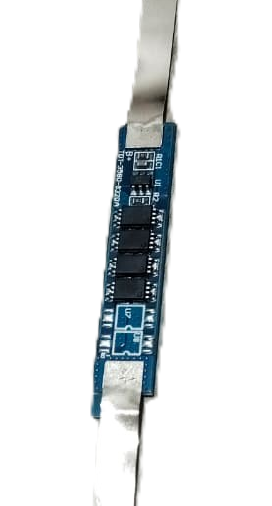

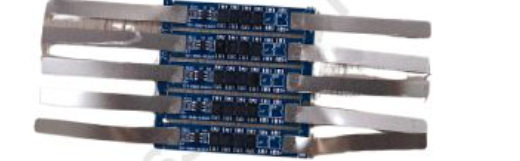

A compact 1S LiFePO₄ Battery Management System (BMS) rated at 6A, designed for reliable protection of single-cell LFP batteries with TDT connector interface.
The BMS LFP 01S/6A (TDT) is a robust and efficient Battery Management System developed specifically for single-cell (1S) LiFePO₄ battery packs. It ensures safe battery operation by continuously monitoring voltage and current during charging and discharging processes.
This BMS integrates essential safety protections including over-charge, over-discharge, over-current, and short-circuit protection, safeguarding LiFePO₄ cells from electrical damage and extending overall battery life. As it is a 1S configuration, cell balancing is not required, allowing for a compact and cost-effective design.
Featuring a TDT connector, the BMS enables secure and stable electrical connections, making it suitable for quick assembly and reliable performance in both commercial and industrial battery applications. It is widely used in portable power packs, small energy storage systems, backup power supplies, IoT devices, and industrial electronics.
Parameter | Specification |
|---|---|
Battery Chemistry | LiFePO₄ (LFP) |
Configuration | 1S (Single Cell) |
Rated Current | 6 Amp |
Nominal Voltage | 3.2V |
Maximum Charge Voltage | 3.65V |
Discharge Cut-off Voltage | ~2.0V |
Over-Charge Protection | Yes |
Over-Discharge Protection | Yes |
Over-Current Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | Not Required (1S) |
Connector Type | TDT Connector |
HS Code | 85079090 |
Operating Temperature | -20°C to +60°C |
Typical Applications | Portable Power, ESS, Backup Systems, Industrial Electronics |
