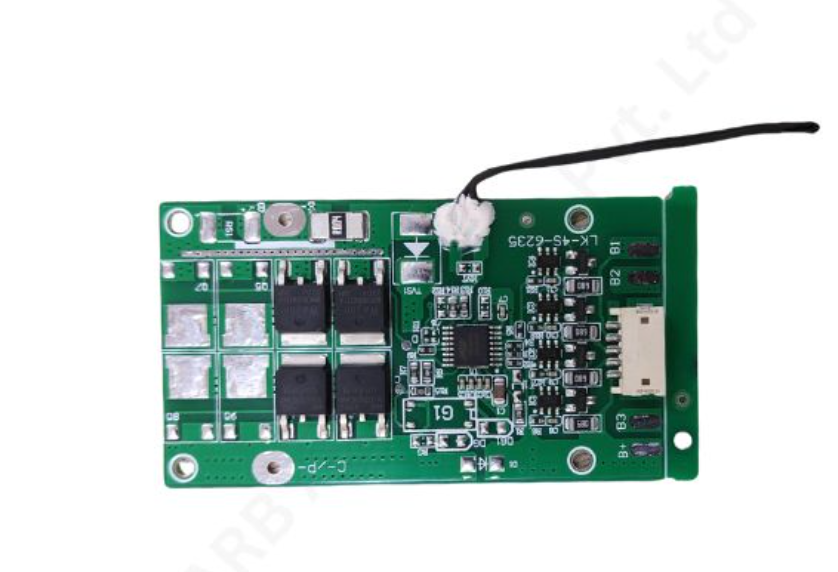

BMS LFP 04S 10A with balancing and connector (SLCT) is a battery management system designed for 4-series LiFePO₄ battery packs, providing protection, cell balancing, and safe operation.
The BMS LFP 04S / 10A with Balancing & Connector (SLCT) is engineered to manage and protect 4S LiFePO₄ (LFP) battery packs efficiently. It ensures safe charging and discharging by monitoring individual cell voltages, current, and temperature (if supported), while maintaining cell balance for extended battery life.
This BMS includes active/passive cell balancing (model dependent) to equalize voltage differences between cells, improving performance and cycle life. With a 10 Amp continuous current rating, it is suitable for small energy storage systems, backup power units, portable power packs, and low-power EV or solar applications.
The integrated connector (SLCT type) allows quick and reliable wiring, simplifying battery pack assembly and maintenance. Built-in protection functions safeguard the battery pack against over-charge, over-discharge, over-current, and short-circuit conditions.
Product Type: Battery Management System (BMS)
Battery Chemistry: LiFePO₄ (LFP)
Configuration: 04S (4 Cells in Series)
Nominal Pack Voltage: 12.8 V
Continuous Discharge Current: 10 A
Peak Discharge Current: As per model specification
Balancing Function: Yes (built-in cell balancing)
Balancing Type: Passive (typical)
Charge Cut-off Voltage (per cell): ~3.65 V
Discharge Cut-off Voltage (per cell): ~2.5 V
Over-Current Protection: Yes
Short-Circuit Protection: Yes
Connector Type: SLCT (pre-installed)
Operating Temperature:
Charge: 0°C to +55°C
Discharge: -20°C to +60°C
Mounting Type: Inline / Pack-mounted
Application Voltage Range: Suitable for 12V LFP battery packs
Applications:
12.8V LiFePO₄ battery packs
Solar energy storage systems
UPS and backup power solutions
Portable power stations
Small EV and mobility systems
DIY and industrial battery packs
For bulk quantity requirements or customized connector solutions, please contact us directly.
