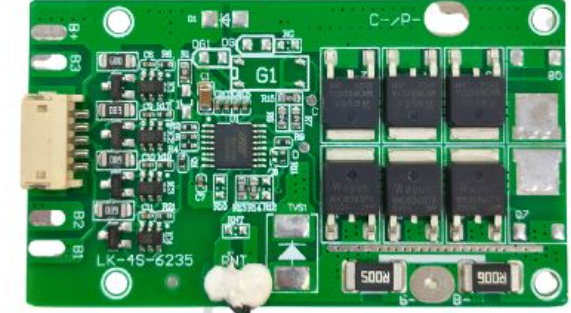

A compact and reliable 4S LiFePO₄ Battery Management System (BMS) rated at 15A, designed to protect lithium iron phosphate battery packs with built-in balance function and secure connector interface.
The BMS LFP 04S/15AMP with Connector (SLCT) is a high-performance Battery Management System engineered specifically for 4-series (4S) LiFePO₄ battery packs. It ensures safe, stable, and efficient operation by continuously monitoring voltage, current, and temperature parameters.
This BMS provides essential protection features including over-charge, over-discharge, over-current, and short-circuit protection, helping to extend battery life and prevent system failures. The integrated cell balancing (BAL) function maintains equal voltage across all cells, improving pack efficiency and reliability over long-term use.
Equipped with a secure SLCT connector, the BMS enables quick installation and reliable electrical connections, making it suitable for both prototype development and production-level battery packs. Its compact design and robust performance make it ideal for applications such as energy storage systems, solar power banks, electric mobility solutions, robotics, and backup power units.
Parameter | Specification |
|---|---|
Battery Type | LiFePO₄ (LFP) |
Configuration | 4S (4 Cells in Series) |
Rated Current | 15 Amp |
Nominal Voltage | 12.8V |
Maximum Charge Voltage | 14.6V |
Discharge Cut-off Voltage | ~10.0V |
Over-Charge Protection | Yes |
Over-Discharge Protection | Yes |
Over-Current Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | Yes (Passive Balancing) |
Connector Type | SLCT Connector |
Operating Temperature | -20°C to +60°C |
Application | ESS, Solar, EV, UPS, Robotics |
