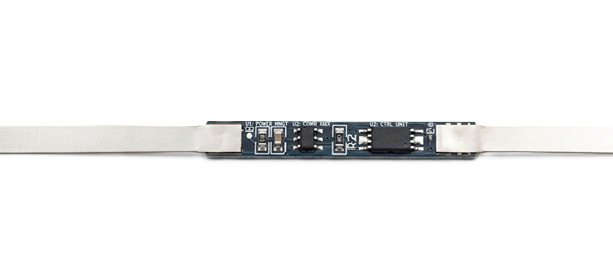

A compact 1S LiFePO₄ Battery Management System (BMS) rated at 2A, designed to provide essential protection for single-cell LFP batteries using a reliable TDT connector.
The BMS LFP 01S/2A (TDT) is a lightweight and efficient Battery Management System specifically designed for single-cell (1S) LiFePO₄ battery packs. It ensures safe battery performance by continuously monitoring voltage and current during charge and discharge cycles.
This BMS integrates core protection features such as over-charge, over-discharge, over-current, and short-circuit protection, preventing cell damage and improving overall battery safety. Since it supports a 1S configuration, cell balancing is not required, allowing for a compact and cost-effective design.
Equipped with a TDT connector, the BMS enables secure and stable electrical connections, making it suitable for quick assembly and long-term reliability. It is ideal for applications including low-power portable devices, backup battery modules, IoT electronics, medical instruments, and small energy storage solutions.
Parameter | Specification |
|---|---|
Battery Chemistry | LiFePO₄ (LFP) |
Configuration | 1S (Single Cell) |
Rated Current | 2 Amp |
Nominal Voltage | 3.2V |
Maximum Charge Voltage | 3.65V |
Discharge Cut-off Voltage | ~2.0V |
Over-Charge Protection | Yes |
Over-Discharge Protection | Yes |
Over-Current Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | Not Required (1S) |
Connector Type | TDT Connector |
Operating Temperature | -20°C to +60°C |
Typical Applications | IoT, Portable Devices, Backup Power, Medical Electronics |
