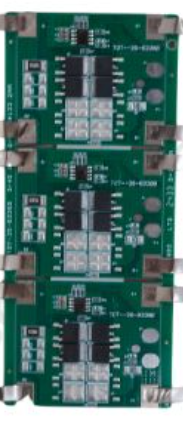

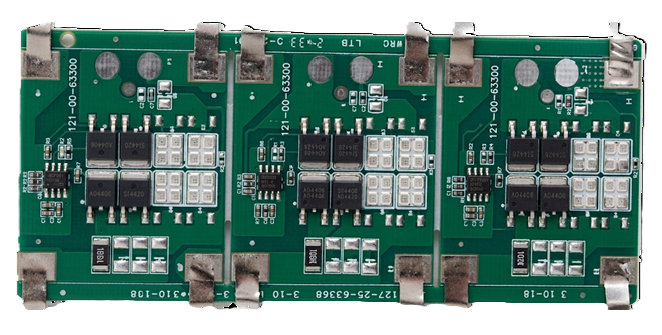

A robust 3S NMC Battery Management System (BMS) rated at 10A, supplied with nickel strip and designed without cell balancing, suitable for compact lithium-ion battery packs.
The BMS NMC 03S/10A with Nickel without Balancing (TDT) is a reliable Battery Management System engineered for 3-series (3S) lithium-ion NMC battery packs. It is designed for applications where basic protection is required without the need for active or passive cell balancing.
This BMS continuously monitors battery voltage and current to ensure safe charging and discharging. It offers essential protection features including over-charge, over-discharge, over-current, and short-circuit protection, helping to prevent battery damage and enhance operational safety.
Supplied with pre-attached nickel strips, the BMS allows easy and secure spot-welding to battery cells, reducing assembly time and ensuring strong electrical connections. The TDT connector interface provides stable and dependable wiring, making this BMS ideal for cost-sensitive and space-constrained battery pack designs.
It is commonly used in power tools, portable energy systems, backup battery packs, DIY battery assemblies, and industrial electronics where matched cells are used and balancing is not required.
Parameter | Specification |
|---|---|
Battery Chemistry | Lithium-ion NMC |
Configuration | 3S (3 Cells in Series) |
Rated Current | 10 Amp |
Nominal Voltage | 11.1V |
Maximum Charge Voltage | 12.6V |
Discharge Cut-off Voltage | ~9.0V |
Over-Charge Protection | Yes |
Over-Discharge Protection | Yes |
Over-Current Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | No |
Connection Type | Nickel Strip |
Connector Type | TDT Connector |
Operating Temperature | -20°C to +60°C |
Typical Applications | Power Tools, Backup Packs, Portable Systems |
