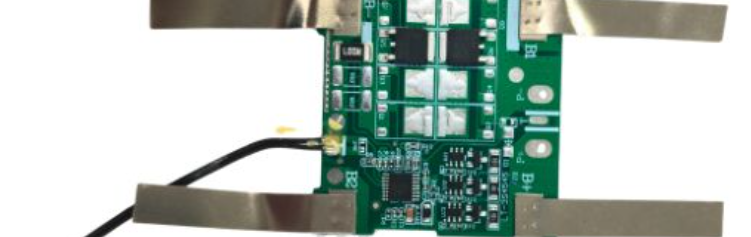

A reliable 3S NMC Battery Management System (BMS) rated at 6A, supplied with nickel strip and integrated cell balancing, designed for safe lithium-ion battery pack operation.
The BMS NMC 03S/6A with Nickel with Balancing (TDT) is a compact and efficient Battery Management System developed for 3-series (3S) lithium-ion NMC battery packs. It ensures stable and safe charging and discharging by continuously monitoring individual cell voltages and pack current.
This BMS incorporates comprehensive protection features including over-charge, over-discharge, over-current, and short-circuit protection. The built-in cell balancing function helps maintain uniform voltage across all three cells, improving battery performance, efficiency, and lifespan.
Supplied with pre-attached nickel strips, the BMS allows easy spot-welding to battery cells, reducing assembly time and ensuring strong electrical connections. The TDT connector interface provides secure and reliable wiring, making it suitable for both DIY and commercial battery pack manufacturing.
It is ideal for applications such as portable power systems, backup battery packs, small power tools, energy storage units, and industrial electronics.
Parameter | Specification |
|---|---|
Battery Chemistry | Lithium-ion NMC |
Configuration | 3S (3 Cells in Series) |
Rated Current | 6 Amp |
Nominal Voltage | 11.1V |
Maximum Charge Voltage | 12.6V |
Discharge Cut-off Voltage | ~9.0V |
Over-Charge Protection | Yes |
Over-Discharge Protection | Yes |
Over-Current Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | Yes (Passive Balancing) |
Connection Type | Nickel Strip |
Connector Type | TDT Connector |
Operating Temperature | -20°C to +60°C |
Typical Applications | Backup Packs, Portable Power, Power Tools, ESS |
