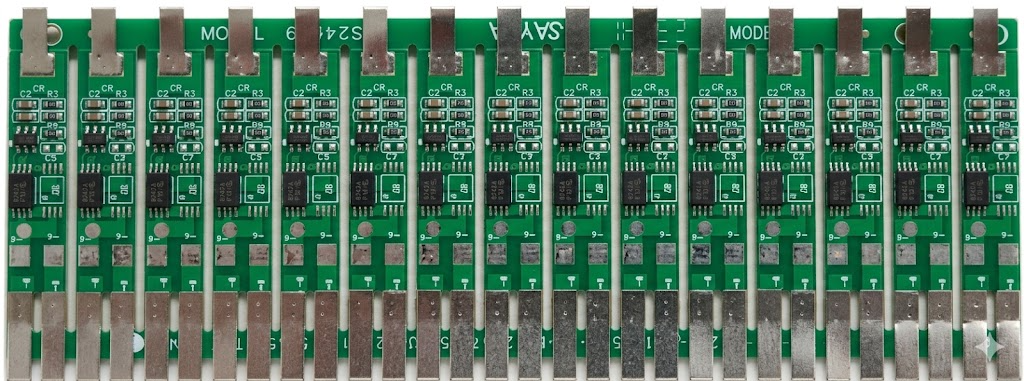

A compact 2S NMC Battery Management System (BMS) rated at 2A, designed for safe operation of small lithium-ion battery packs with TDT connector interface.
The BMS NMC 02S/2A (TDT) is a precision Battery Management System developed for 2-series (2S) lithium-ion NMC battery packs. It ensures safe and reliable battery performance by monitoring cell voltages and current during charging and discharging.
This BMS provides over-charge, over-discharge, over-current, and short-circuit protection, preventing damage to the battery pack and enhancing safety. Its low current rating makes it ideal for small-scale portable devices and low-power battery systems.
Equipped with a TDT connector, it ensures secure and stable electrical connections for easy integration. The compact and lightweight design is suitable for applications like portable electronics, IoT devices, backup batteries, and medical instruments.
Parameter | Specification |
|---|---|
Battery Chemistry | Lithium-ion NMC |
Configuration | 2S (2 Cells in Series) |
Rated Current | 2 Amp |
Nominal Voltage | 7.4V |
Maximum Charge Voltage | 8.4V |
Discharge Cut-off Voltage | ~6.0V |
Over-Charge Protection | Yes |
Over-Discharge Protection | Yes |
Over-Current Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | Yes |
Connector Type | TDT Connector |
HS Code | 85079090 |
Operating Temperature | -20°C to +60°C |
Typical Applications | IoT Devices, Portable Electronics, Backup Battery, Medical Devices |
